PRODUCT DESCRIPTION
Key Features
* Panel measures up to 1000mm wide ,3000mm height.
* Powered by hardware for high performance trouble free operation.
* Exceptional quality which operates a multi-point locking function.

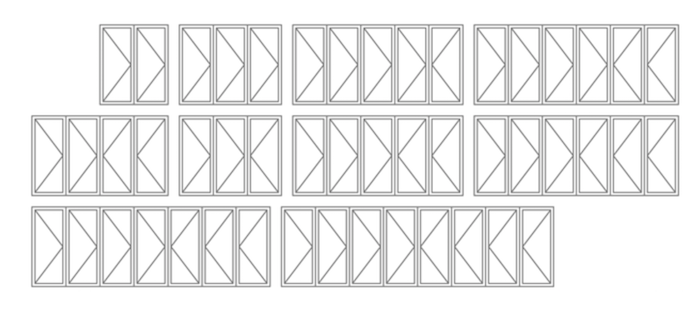

* Adaptable wide range of bi folding door configurations.
* Integrated Internally fitted, retractable fly screen option available
* Full perimeter, continuous weather seals provide cost-effective weatherproofing and acoustic performance
* Low sill for wheelchair access available
| Maximum Product Performance | |
| SLS (Pa) | 1600 |
| ULS (Pa) | 2000 |
| WATER (Pa) | 450 |
| Glazing Details | |
| Single Glazed | 6 – 13.5mm |
| Double Glazed | 18 – 30 mm |
| Acoustic Performance: Rw (C;Ctr) | |
| 6.38mm Laminate | 29 dB |
| 10.38mm/12/6.38mm IGU | 39 dB |
| Maximum Recommended Sizes | |
| Height | 3000mm |
| Width | 1000mm |
| Weight | 80kg / 170kg |
| Thermal Performance | |
| Uw range SG | 4.4 – 6.2 |
| SHGC range SG | 0.26 – 0.59 |
| Uw range DG | 3.2 – 4.0 |
| SHGC range DG | 0.15 – 0.51 |
| Uw range IGU | 2.8 – 3.0 |
| SHGC range IGU | 0.17 – 0.30 |
