PRODUCT DESCRIPTION
Key Features
- Top-Mounted Roller System
Engineered for smooth, stable, and low-maintenance sliding performance using overhead rollers. - Discreet Floor Guide Channels
Sleek, integrated floor guides run quietly and effortlessly within hidden channels beneath the panels. - Versatile Glazing Configurations
- Designed to fit single glazing up to 13.5mm within a 19mm glazing pocket.
- Supports insulated double glazing up to 33mm (IGU) for enhanced thermal performance.
- Designed for Large Panels
- Accommodates panel heights up to 3200mm, depending on site and project specifications.
- Capable of handling individual panel weights up to 300kg.
- Seamless Weather & Acoustic Sealing
Equipped with integrated seals to improve insulation, soundproofing, and protection against the elements.

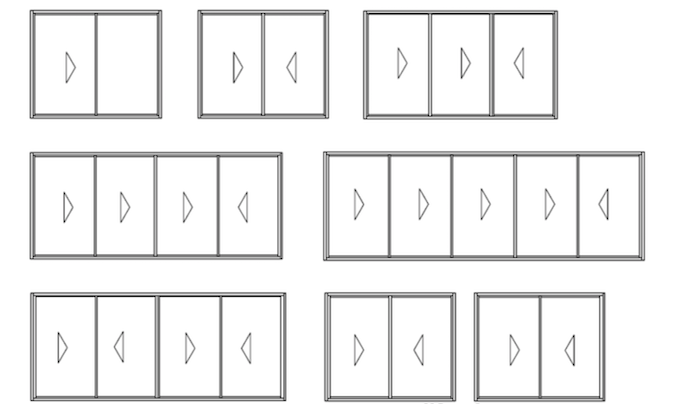

Configurations
Specifications
| Frame Dimensions | |
| Option 1 | 100x 40mm |
| Option 2 | 150 x 40mm |
| Maximum Product Performance | |
| SLS (Pa) | 3000 |
| ULS (Pa) | 6000 |
| WATER (Pa) | 300 |
| Glazing Details | |
| Single Glazed | 5 – 13.52mm |
| Double Glazed | 18 – 33mm |
| Acoustic Performance: Rw (C;Ctr) | |
| 6.38mm Laminate | 32 (0; -2) dB |
| 10.38mm/12/6.38mm IGU | 38 (-2;-4) dB |
| Maximum Recommended Sizes | |
| Height | 3200mm |
| Width | 2500mm |
| Weight | 300kg per panel |
| Thermal Performance | |
| Uw range SG | 4.3 – 6.1 |
| SHGC range SG | 0.38 – 0.66 |
| Uw range DG | 3.0 – 3.9 |
| SHGC range DG | 0.22 – 0.55 |
| Uw range IGU | 2.6- 2.9 |
| SHGC range IGU | 0.17 – 0.30 |
