PRODUCT DESCRIPTION
Key Features
- Available in both 100 and 150 series commercial-grade framing systems
- Supports various glazing types: single pane, laminated, double, and triple glazed options
- Engineered to suit a wide range of commercial and architectural designs
- Equipped with advanced weather seals and acoustic seals for enhanced insulation and noise reduction
- Optional security enhancements including dual locking points and multi-point lock systems
- Innovative design allows ventilation without water ingress, keeping interiors dry and fresh
- Compatible with fiber mesh insect screens and high-security Crimsafe screen options

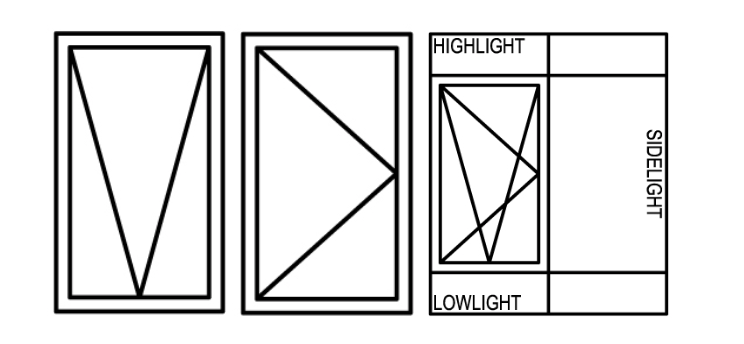

Configurations
Specifications
| Maximum Product Performance | |
| SLS (Pa) | 1000 |
| ULS (Pa) | 3500 |
| WATER (Pa) | 700 |
| Glazing Details | |
| Single Glazed | 4 – 12.38mm |
| Double Glazed | 24 – 33mm |
| Acoustic Performance: Rw (C;Ctr) | |
| 6.38mm Laminate | 32 (0,-1) dB |
| 10.38mm/12/6.38mm IGU | 38 (-2;-4) dB |
| Awning – Maximum Recommended Sizes | |
| Height | 2400mm |
| Width | 1000mm |
| Weight | 300 kg |
| Thermal Performance | |
| Uw range SG | 4.3 – 6.1 |
| SHGC range SG | 0.38 – 0.66 |
| Uw range DG | 3.0 – 3.9 |
| SHGC range DG | 0.22 – 0.55 |
| Uw range IGU | 2.9 – 3.0 |
| SHGC range IGU | 0.17 – 0.30 |
